Umlenken
– Beschichtet oder vollkeramisch

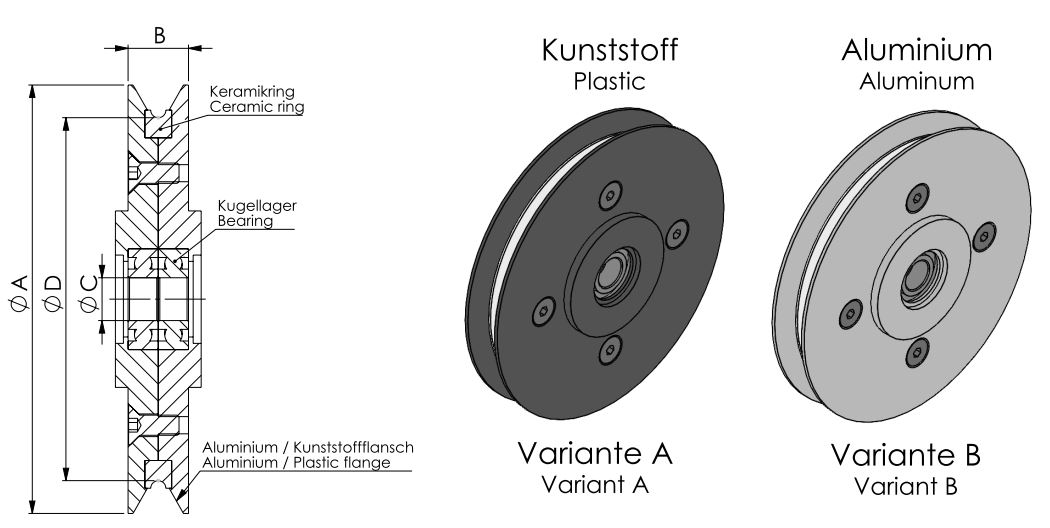

– Mehrteilige Drahtleitrollen
– In verschiedenen Materialien und Formen
Grundwerkstoffe
Aluminium
Kunststoff
Stahl
Beschichtungen
HCC99 (Aluminiumoxid)
Farbe: Hellgrau
Rauigkeit: Ra 0,1 – 0,5 µm
Schichtstärke: 0,1 – 0,5 mm
Härte: 1400 – 1600 HV
Dichte: 3,95 g/cm³
HCC94 (Chromoxid)
Farbe: Schwarz
Rauigkeit: => Ra 0,5 µm
Schichtstärke: 0,1 – 0,5 mm
Härte: 1300 – 1500 HV
Dichte: 5,22 g/cm³
HCC84 (Wolframcarbid)
Farbe: Metallisch
Rauigkeit: < Ra 0,1 µm
Schichtstärke: 0,1 – 0,5 mm
Härte: 1200 – 1400 HV
Dichte: 5,6 – 5,8 g/cm³
HCC86 (Chromcarbid)
Farbe: Metallisch
Rauigkeit: >= Ra 0,15 µm
Schichtdicke: 0,1 – 0,5 mm
HCC200 (Hardcoat)
Farbe: Dunkelgrau
Rauigkeit: Erhöht
Schichtdicke: ca. 55 µm
Härte: 400 – 550 HV
* Schichtdicken können auf Kundenwunsch verändert werden
Produkte

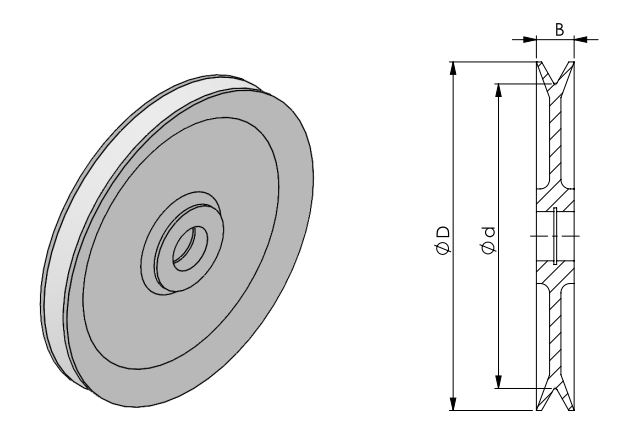

Umlenkrolle mit V-Kontur
| Artikelnummer | D [mm] | d [mm] | B [mm] |
|---|---|---|---|
| 18-HC19512 | 19,5 | 10 | 12 |
| 18-HC2585 | 25 | 16,1 | 8,5 |
| 18-HC3918 | 39 | 23 | 15 |
| 18-HC358 | 35 | 26,5 | 8 |
| 18-HC35295 | 35 | 27 | 29,5 |
| 18-HC5032 | 50 | 27,5 | 32 |
| 18-HC4010 | 40 | 28 | 10 |
| 18-HC8334 | 83 | 28 | 34 |
| 18-HC3326 | 33 | 32 | 25,5 |
| 18-HC3710 | 37 | 32 | 11 |
| 18-HC448 | 44 | 32 | 8 |
| 18-HC4313 | 43 | 35,5 | 13 |
| 18-HC4221 | 42 | 38,2 | 21 |
| 18-HC4711-1 | 47 | 40 | 11 |
| 18-HC4813 | 48 | 40 | 13 |
| 18-HC498 | 49 | 40 | 8 |
| 18-HC5025 | 50 | 40 | 25 |
| 18-HC5025-1 | 50 | 40 | 25 |
| 18-HC8018/1 | 80 | 42 | 18 |
| 18-HC56128 | 56 | 44 | 12,8 |
| 18-HC56152 | 56 | 44 | 15,2 |
| 18-HC53520 | 53,5 | 45 | 20 |
| 18-HC5511 | 55 | 45 | 11 |
| 18-HC5513-2 | 55 | 45 | 13 |
| 18-HC5513-1 | 55 | 45 | 13 |
| 18-HC5515 | 55 | 45 | 15 |
| 18-HC5519 | 55 | 45 | 19 |
| 18-HC5511-1 | 55 | 46 | 11 |
| 18-HC5611 | 56 | 46 | 11 |
| 18-HC6020-1 | 60 | 50 | 20 |
| 18-HC6111-1 | 61 | 50 | 11 |
| 18-HC68125 | 68 | 50 | 12,5 |
| 18-HC56152 | 56 | 52 | 15,2 |
| 18-HC8025 | 80 | 55 | 25 |
| 18-HC7926173 | 79 | 56,5 | 17,5 |
| 18-HC7111-1 | 71 | 60 | 11 |
| 18-HC1810 | 80 | 60 | 10 |
| 18-HC8012 | 80 | 60 | 12 |
| 18-HC8015-1 | 80 | 60 | 15 |
| 18-HC12040 | 120 | 60 | 40 |
| 18-HC8018 | 80 | 62 | 18 |
| 18-HC7415 | 74 | 63 | 15 |
| 18-HC7812 | 78 | 64 | 12 |
| 18-HC7511 | 75 | 65 | 11 |
| 18-HC8022 | 80 | 65,5 | 22 |
| 18-HC7030 | 70 | 66 | 30 |
| 18-HC9030-1 | 90 | 66 | 30 |
| 18-HC9428 | 94 | 68 | 28 |
| 18-HC76515 | 76,5 | 70 | 15 |
| 18-HC8013 | 80 | 70 | 13 |
| 18-HC8015-2 | 80 | 70 | 15 |
| 18-HC9020 | 90 | 71 | 20 |
| 18-HC90194 | 90 | 75 | 19,4 |
| 18-HC9915 | 99 | 75 | 15 |
| 18-HC11520 | 115 | 75 | 20 |
| 18-HC87815 | 87,8 | 76 | 15 |
| 18-HC8815-1 | 88 | 79 | 15 |
| 18-HC9095 | 90 | 80 | 9,5 |
| 18-HC9010 | 90 | 80 | 10 |
| 18-HC9518 | 95 | 80 | 18 |
| 18-HC9623 | 96 | 80 | 23 |
| 18-HC10016 | 100 | 80 | 20 |
| 18-HC12025-1 | 120 | 80 | 25 |
| 18-HC12050 | 120 | 80 | 50 |
| 18-HC14080 | 140 | 80 | 80 |
| 18-HC15031 | 150 | 80 | 31 |
| 18-HC9538 | 95 | 80,4 | 38 |
| 18-HC9525 | 95 | 81 | 25 |
| 18-HC10016-1 | 100 | 81 | 16 |
| 18-HC12026 | 120 | 90 | 26 |
| 18-HC12027 | 120 | 90 | 27 |
| 18-HC11518 | 114 | 94 | 18 |
| 18-HC15063P | 150 | 95,5 | 63 |
| 18-HC11014 | 110 | 99 | 18,5 |
| 18-HC11526H | 115 | 100 | 26 |
| 18-HC116172-1 | 116 | 100 | 17,2 |
| 18-HC11825 | 118 | 100 | 25 |
| 18-HC120145 | 120 | 100 | 14,5 |
| 18-HC12020-1 | 120 | 100 | 20 |
| 18-HC12023-1 | 120 | 100 | 23 |
| 18-HC120255 | 120 | 100 | 25,5 |
| 18-HC11411 | 114 | 102 | 17,5 |
| 18-HC12016-1 | 120 | 104 | 16 |
| 18-HC13522 | 135 | 105 | 22 |
| 18-HC12020 | 120 | 106 | 20 |
| 18-HC12830 | 128 | 106 | 30 |
| 18-HC12010 | 120 | 108 | 10 |
| 18-HC13527 | 135 | 109 | 27 |
| 18-HC12817 | 128 | 112 | 17 |
| 18-HC13635 | 136 | 112 | 35 |
| 18-HC13284 | 132 | 120 | 8,4 |
| 18-HC13213 | 132 | 120 | 13 |
| 18-HC13235 | 132 | 120 | 35 |
| 18-HC13415 | 134 | 120 | 15 |
| 18-HC1341201 | 134 | 120 | 15 |
| 18-HC1398175 | 139,8 | 120 | 17,5 |
| 18-HC140175 | 140 | 120 | 17,5 |
| 18-HC140197 | 140 | 120 | 19,7 |
| 18-HC14020 | 140 | 120 | 20 |
| 18-HC14260 | 142 | 120 | 60 |
| 18-HC14830 | 148 | 120 | 30 |
| 18-HC15020-1 | 150 | 120 | 20 |
| 18-HC135922 | 135,9 | 125 | 22 |
| 18-HC14325 | 143 | 125 | 25 |
| 18-HC15021 | 150 | 130 | 21 |
| 18-HC16020-1 | 160 | 138 | 20 |
| 18-HC20025 | 200 | 140 | 25 |
| 18-HC15312 | 153 | 142 | 20 |
| 18-HC15220 | 152 | 145 | 20 |
| 18-HC16423-1 | 164 | 146 | 23 |
| 18-HC16423 | 164 | 146 | 23 |
| 18-HC167172 | 167 | 147 | 17,2 |
| 18-HC17020-1 | 170 | 150 | 20 |
| 18-HC18021 | 180 | 150 | 21 |
| 18-HC17026 | 170 | 151 | 26 |
| 18-HC165315 | 165 | 152 | 31,5 |
| 18-HC17722 | 177 | 153 | 22 |
| 18-HC18924 | 189 | 153 | 24 |
| 18-HC17639 | 176 | 158 | 39 |
| 18-HC17821 | 178 | 158 | 21 |
| 18-HC18532 | 185 | 159 | 32 |
| 18-HC18019-1 | 180 | 160 | 19 |
| 18-HC18030 | 180 | 160 | 30 |
| 18-HC19030-1 | 190 | 160 | 30 |
| 18-HC199195 | 199 | 170 | 19,5 |
| 18-HC21123 | 211 | 170 | 23 |
| 18-HC19940 | 199 | 177 | 40 |
| 18-HC20528 | 205 | 180 | 28,25 |
| 18-HC20822 | 208 | 180 | 22 |
| 18-HC21023 | 210 | 186 | 23 |
| 18-HC20114 | 201,5 | 190 | 14 |
| 18-HC20226-1 | 202 | 191 | 26 |
| 18-HC19233 | 219 | 192 | 33 |
| 18-HC22932 | 229 | 195 | 32,5 |
| 18-HC23028 | 230 | 196 | 28 |
| 18-HC24542 | 245 | 198 | 42 |
| 18-HC22021 | 220 | 200 | 21 |
| 18-HC24014 | 240 | 200 | 14 |
| 18-HC25030 | 250 | 200 | 30 |
| 18-HC24018-1 | 240 | 202 | 18 |
| 18-HC22818 | 228 | 204 | 18 |
| 18-HC22016 | 220 | 206,83 | 16 |
| 18-HC22016-1 | 220 | 209 | 16 |
| 18-HC22828 | 228 | 210 | 28 |
| 18-HC24020 | 240 | 210 | 20 |
| 18-HC29960 | 299 | 220 | 60 |
| 18-HC26542 | 265 | 225 | 42 |
| 18-HC29556 | 295 | 228 | 56 |
| 18-HC25821 | 258 | 240 | 21 |
| 18-HC26415 | 264 | 240 | 16 |
| 18-HC27828 | 278 | 250 | 28 |
| 18-HC30040 | 300 | 250 | 40 |
| 18-HC30040-1 | 300 | 250 | 40 |
| 18-HC32048 | 320 | 250 | 48 |
| 18-HC29040-1 | 290 | 259 | 40 |
| 18-HC30026 | 300 | 260 | 26 |
| 18-HC30024 | 300 | 270 | 24 |
| 18-HC32036 | 320 | 280 | 36 |
| 18-HC31723 | 317 | 297 | 23 |
| 18-HC35060 | 350 | 298 | 60 |
| 18-HC32512 | 325 | 300 | 12 |
| 18-HC33024 | 330 | 300 | 24 |
| 18-HC33034 | 330 | 300 | 34 |
| 18-HC3308375 | 330,8 | 300 | 37,5 |
| 18-HC3461399 | 346,1 | 300 | 39,9 |
| 18-HC40070 | 400 | 300 | 70 |
| 18-HC35040-1 | 350 | 300,6 | 40 |
| 18-HC35036 | 350 | 302 | 36 |
| 18-HC36844 | 368 | 304,8 | 44 |
| 18-HC35030 | 350 | 310 | 30 |
| 18-HC35435 | 354 | 310 | 35 |
| 18-HC33840 | 350 | 318 | 40 |
| 18-HC376319 | 376 | 350 | 31,9 |
| 18-HC38027 | 380 | 350 | 27 |
| 18-HC41040 | 410 | 380 | 40 |
| 18-HC4461399 | 446,1 | 400 | 39,9 |
| 18-HC450193 | 450 | 400 | 19 |
| 18-HC42015 | 430 | 413 | 15 |
| 18-HC50032 | 500 | 470 | 32 |
| 18-HC5402415 | 540 | 500 | 24,15 |

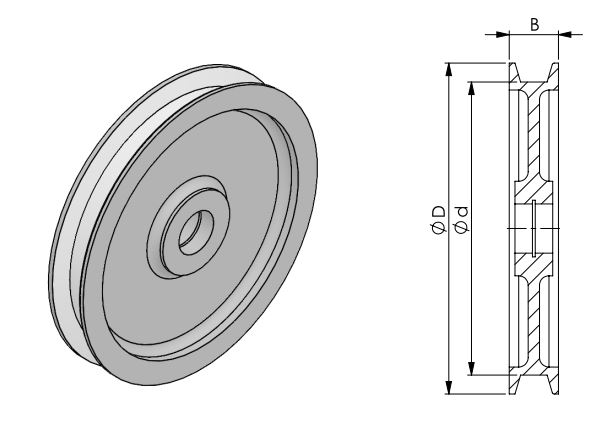

Umlenkrolle mit Trapezkontur
| Artikelnummer | D [mm] | d [mm] | B [mm] |
|---|---|---|---|
| 18-HC1718 | 17 | 12 | 18 |
| 18-HC2820 | 28 | 20 | 20 |
| 18-HC3310 | 33 | 25 | 10 |
| 18-HC5012 | 50 | 35 | 12 |
| 18-HC4325 | 43 | 40 | 25 |
| 18-HC4510 | 45 | 40 | 10 |
| 18-HC5010 | 50 | 40 | 10 |
| 18-HC5018 | 50 | 40 | 18 |
| 18-HC56128 | 56 | 44 | 13 |
| 18-HC5617 | 56 | 50 | 17 |
| 18-HC5815-1 | 58 | 50 | 15 |
| 18-HC80100 | 80 | 53 | 100 |
| 18-HC7817 | 78 | 57 | 17 |
| 18-HC7511-1 | 75 | 60 | 11 |
| 18-HC7615-1 | 76 | 63,7 | 15 |
| 18-HC80153 | 80 | 70 | 15 |
| 18-HC8217 | 82 | 70 | 17 |
| 18-HC7917 | 79,8 | 71 | 17 |
| 18-HC9525 | 95 | 75 | 25 |
| 18-HC871739 | 87 | 77 | 17,3 |
| 18-HC871735 | 87 | 77 | 17,3 |
| 18-HC10030 | 100 | 79,6 | 30 |
| 18-HC9018-1 | 90 | 80 | 18 |
| 18-HC9030 | 90 | 80 | 30 |
| 18-HC11524 | 115 | 95 | 24 |
| 18-HC109622 | 109,6 | 98 | 22 |
| 18-HC11019 | 114 | 98 | 19 |
| 18-HC10510 | 105 | 100 | 10 |
| 18-HC11618-1 | 116 | 100 | 18 |
| 18-HC12415-2 | 124 | 100 | 15 |
| 18-HC12524 | 125,5 | 100 | 24,3 |
| 18-HC13025 | 130 | 106,1 | 25 |
| 18-HC13835 | 138 | 119 | 35 |
| 18-HC13015 | 130 | 120 | 15 |
| 18-HC13020 | 130 | 120 | 20 |
| 18-HC130174 | 130 | 120 | 174 |
| 18-HC13215 | 132 | 120 | 15 |
| 18-HC13818 | 138 | 120 | 18 |
| 18-HC13935 | 139 | 120 | 35 |
| 18-HC141528 | 141,5 | 120 | 60 |
| 18-HC20044 | 200 | 150 | 44 |
| 18-HC18028-1 | 180 | 160 | 28 |
| 18-HC19036 | 190 | 162 | 36 |
| 18-HC20226-3 | 202 | 191 | 26 |
| 18-HC20020 | 200 | 196 | 20 |
| 18-HC20844 | 208 | 198 | 44 |
| 18-HC22030 | 220 | 200 | 30 |
| 18-HC25014 | 250 | 235 | 14 |
| 18-HC26927 | 269 | 250 | 27 |
| 18-HC2741842 | 274 | 250 | 19 |
| 18-HC2741865 | 274 | 250 | 23 |
| 18-HC27536 | 275 | 250 | 27 |
| 18-HC318236 | 318 | 300 | 23,6 |
| 18-HC34070 | 340 | 300 | 70 |
| 18-HC36546 | 365 | 300 | 46 |
| 18-HC33028 | 330 | 307 | 28 |
| 18-HC380152 | 380 | 350 | 152 |
| 18-HC380213 | 380 | 350 | 213,95 |
| 18-HC38556 | 385 | 365 | 56 |
| 18-HC39231 | 392 | 376 | 31 |
| 18-HC40092 | 400 | 392 | 92 |
| 18-HC52424 | 524 | 500 | 24 |

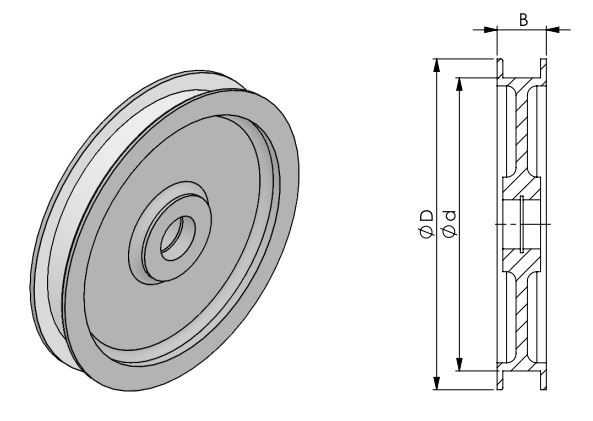

Umlenkrolle mit U-Kontur
| Artikelnummer | D [mm] | d [mm] | B [mm] |
|---|---|---|---|
| 18-HC306 | 30 | 25 | 6 |
| 18-HC416 | 41 | 33 | 6 |
| 18-HC6017 | 60 | 54 | 17 |
| 18-HC7020-1 | 70 | 54 | 20 |
| 18-HC79817 | 79,8 | 62 | 17 |
| 18-HC11018 | 110 | 66 | 18 |
| 18-HC11065-1 | 110 | 95 | 65 |
| 18-HC15320 | 153 | 140 | 20 |
| 18-HC20034 | 200 | 150 | 34 |
| 18-HC20030 | 200 | 180 | 30 |
| 18-HC24054 | 240 | 190 | 54 |
| 18-HC39040 | 390 | 362 | 40 |
| 18-HC53225 | 532 | 506 | 25 |
Verschachtelte Umlenkrollen mit V-Kontur
| Artikelnummer | D [mm] | d [mm] | B [mm] |
|---|---|---|---|
| 18-HC54255 | 54 | 38 | 13 |
| 18-HC69115 | 69 | 50 | 11,5 |
| 18-HC9016 | 90 | 65 | 16 |
| 18-HC79595 | 79,5 | 70 | 9,5 |
| 18-HC10020-1 | 100 | 73 | 20 |
| 18-HC9116 | 91 | 76 | 16 |
| 18-HC9422 | 94 | 76 | 22 |
| 18-HC110205 | 110 | 80 | 20,5 |
| 18-HC1009117 | 100 | 83 | 17 |
| 18-HC12023 | 120 | 90 | 23 |
| 18-HC11823-1 | 118 | 98 | 23 |
| 18-HC11823-2 | 118 | 98 | 23 |
| 18-HC14523 | 145 | 115 | 23 |
| 18-HC137108 | 137 | 120 | 10,8 |
| 18-HC18023 | 180 | 150 | 23 |
| 18-HC18821 | 188 | 154 | 21 |
| 18-HC1798276 | 179,8 | 156,44 | 27,6 |
| 18-HC18025 | 180 | 157 | 25 |
| 18-HC180195 | 180 | 160 | 19,5 |
| 18-HC25028 | 250 | 193 | 28 |
| 18-HC23426 | 234 | 198 | 26 |
| 18-HC233522 | 233,5 | 200 | 26 |
| 18-HC24026-1 | 240 | 200 | 26 |
| 18-HC240215 | 240 | 205 | 21,5 |
| 18-HC250165 | 250 | 235 | 16,5 |
| 18-HC27727 | 277 | 250,5 | 27 |
| 18-HC32848 | 328 | 270 | 48 |
| 18-HC30014 | 300 | 278 | 14 |
| 18-HC30015 | 300 | 280 | 15 |
| 18-HC33524 | 335 | 300 | 24 |
| 18-HC33025-2 | 330 | 303 | 25 |
| 18-HC37848 | 378 | 318,3 | 48 |
| 18-HC35038 | 350 | 322 | 38 |
| 18-HC38340 | 383 | 350 | 40,5 |
| 18-HC4502251 | 450 | 400 | 22,5 |
| 18-HC4502252 | 450 | 400 | 22,5 |
| 18-HC45030 | 450 | 400 | 30 |
| 18-HC4503825 | 450 | 400 | 38,25 |
| 18-HC4503825-1 | 450 | 400 | 38,25 |
| 18-HC517365 | 517 | 480 | 36,5 |
| 18-HC540245 | 540 | 500 | 24,5 |
| 18-HC434953305 | 434,95 | 400 | 33,05 |

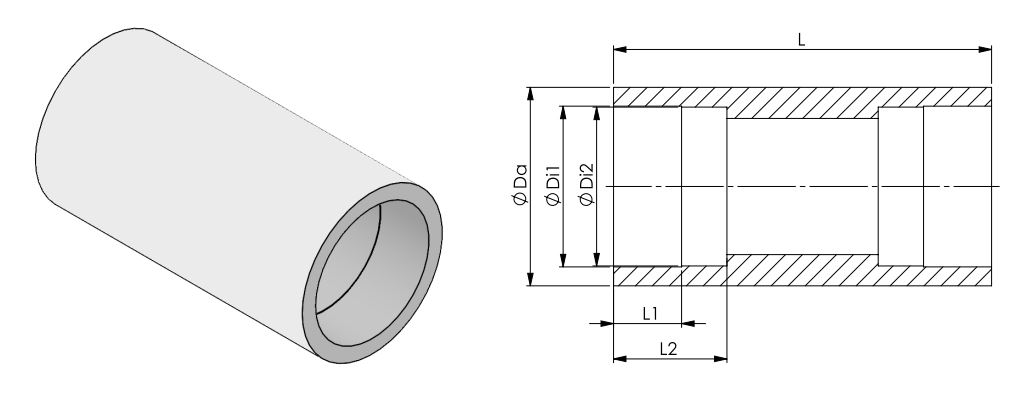

Tastrollen ohne Sicherungsring
| Artikelnummer | Da [mm] | Di1 [mm] | Di2 [mm] | L1 [mm] | L2 [mm] | L [mm] |
|---|---|---|---|---|---|---|
| 18-ST525100 | 52,5 | 42,5 | 42 K6 | 18,00 | 30 | 100 |

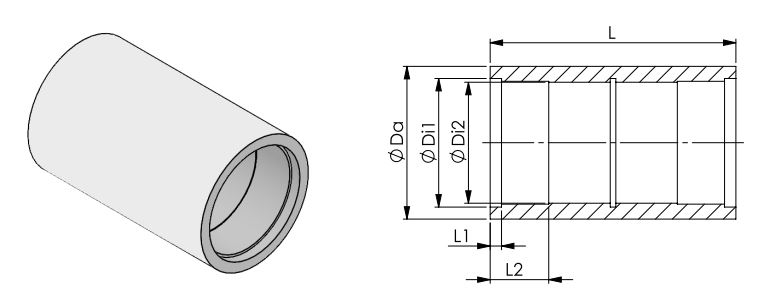

Tastrolle mit Sicherungsring
| Artikelnummer | Da [mm] | Di1 [mm] | Di2 [mm] | L1 [mm] | L2 [mm] | L [mm] |
|---|---|---|---|---|---|---|
| 18-ST4065 | 40,4 | 34 | 32,5 | 3 | 15,5 | 65 |
Mehrteilige Drahtleitrollen
| Artikelnummer | A [mm] | D [mm] | C [mm] | B [mm] | Variante |
|---|---|---|---|---|---|
| 80-HCAR-2015-03 | 20,7 | 16,4 | 3,0 | 5,3 | A |
| 80-HCAR-3020-04 | 29,0 | 20,0 | 4,0 | 7,4 | A |
| 80-HCAR-3020-05 | 29,0 | 20,0 | 5,0 | 7,4 | A |
| 80-HCAR-4020-04 | 40,0 | 20,0 | 4,0 | 15 | A |
| 80-HCAR-4530-05 | 46,7 | 30,0 | 5,0 | 10,2 | A |
| 80-HCAR-4530-06 | 46,7 | 30,0 | 6,0 | 10,2 | A |
| 80-HCAR-4530-07 | 46,7 | 30,0 | 7,0 | 10,2 | A |
| 80-HCAR-4530-08 | 46,7 | 30,0 | 8,0 | 10,2 | A |
| 80-HCAR-6040-07 | 61,0 | 40,6 | 7,0 | 12 | A |
| 80-HCAR-6040-08 | 61,0 | 40,6 | 8,0 | 12 | A |
| 80-HCAR-6040-10 | 61,0 | 40,6 | 10,0 | 12 | A |
| 80-HCAR-6040-12 | 61,0 | 40,6 | 12,0 | 12 | A |
| 80-HCAR-8050-10 | 80,2 | 49,7 | 10,0 | 14,3 | A |
| 80-HCAR-8050-12 | 80,2 | 49,7 | 12,0 | 14,3 | A |
| 80-HCAR-10050-10 | 100,0 | 49,5 | 10,0 | 29 | A |
| 80-HCAR-2015AL-03 | 20,0 | 15,0 | 3,0 | 4,8 | B |
| 80-HCAR-3020AL-04 | 28,4 | 20,0 | 4,0 | 6,4 | B |
| 80-HCAR-4530AL-06 | 46,6 | 30,0 | 6,0 | 10,7 | B |
| 80-HCAR-6040AL-08 | 60,0 | 40,0 | 8,0 | 13 | B |
| 80-HCAR-8050AL-10 | 79,2 | 50,0 | 10,0 | 15 | B |
